📖 Step 2 — Learning Material

1️⃣ Introduction

The anterior abdominal wall forms the front boundary of the abdominal cavity and plays a vital role in supporting abdominal organs, maintaining posture, and assisting respiration and movements. It extends from the thoracic margin above to the pelvis below, and from the vertebral column posteriorly to the skin anteriorly.

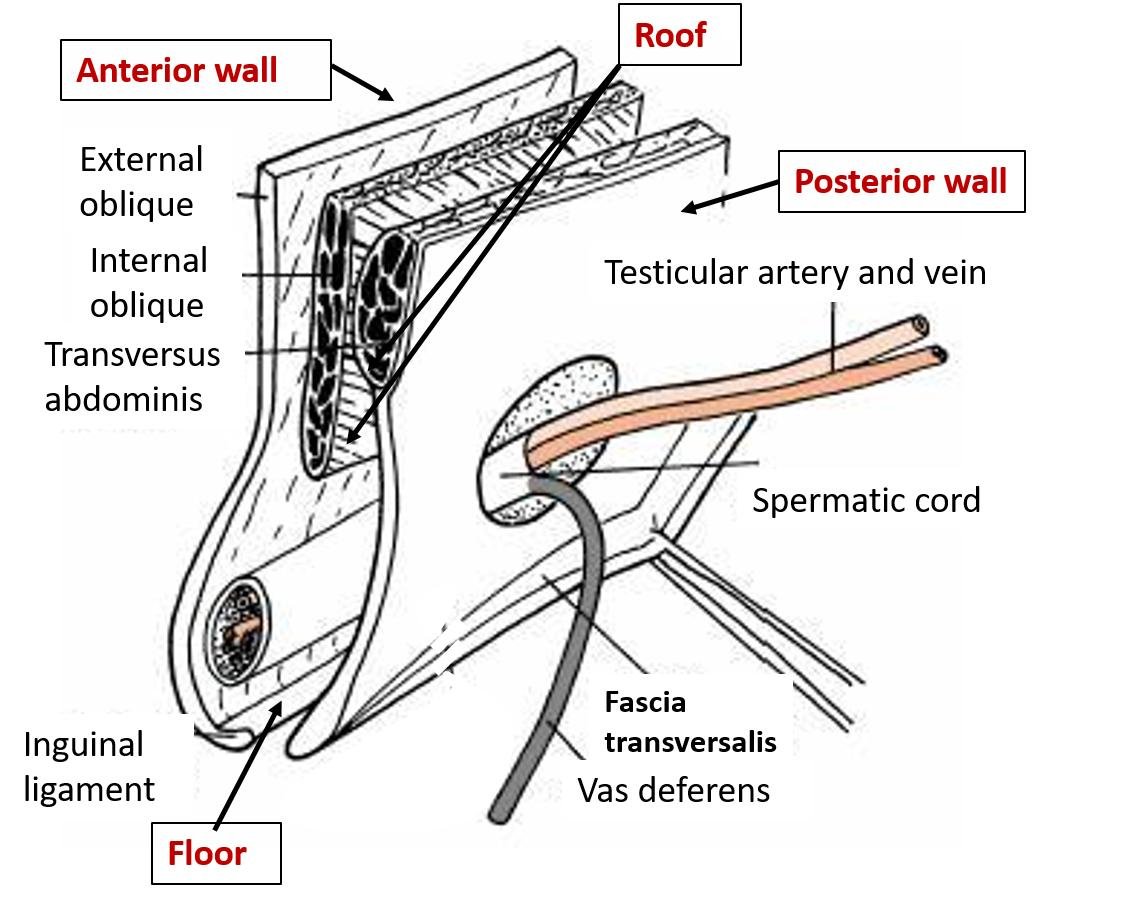

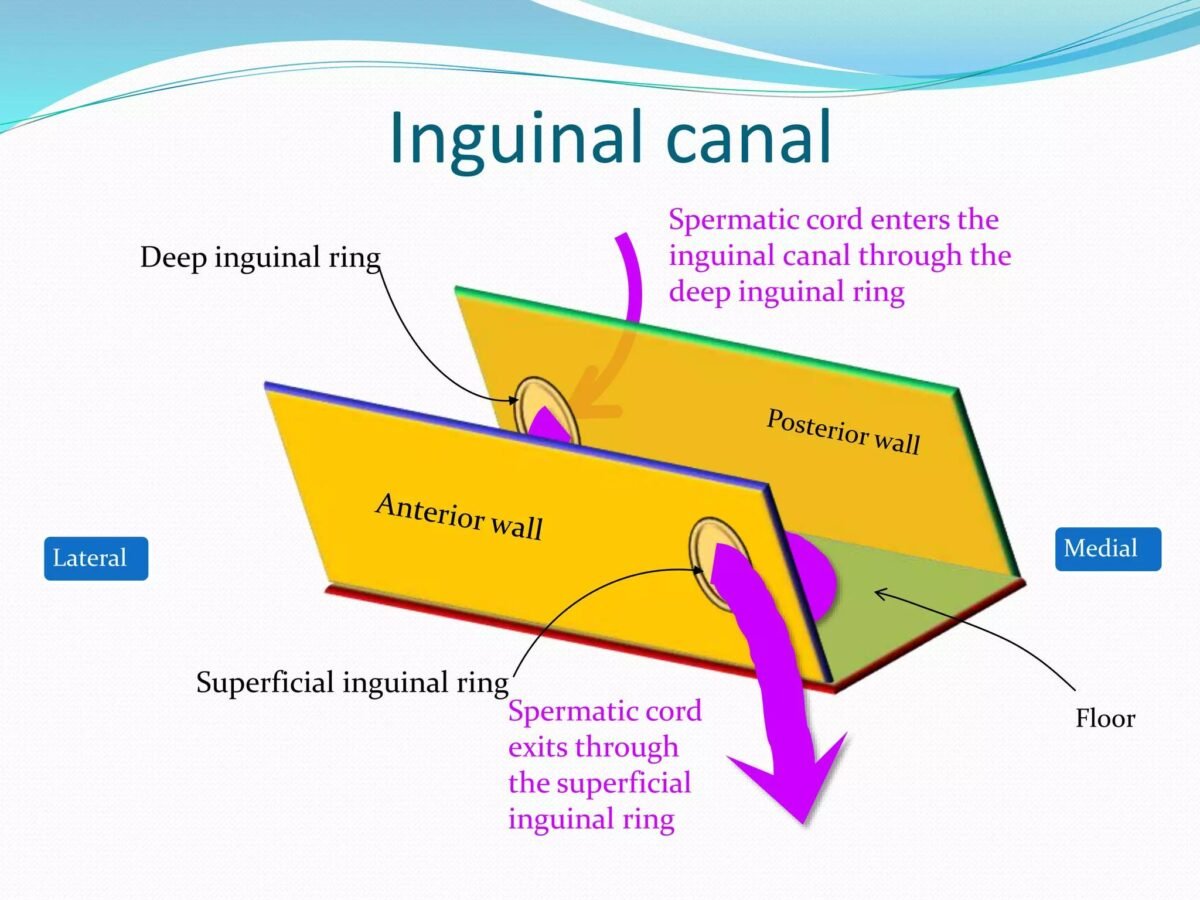

A key specialized structure within this wall is the inguinal canal, an oblique passage in the lower abdomen that allows structures such as the spermatic cord in males and round ligament in females to pass through.

Clinically, this region is extremely important because it is a common site of hernias, especially inguinal hernias, which are among the most frequent surgical conditions encountered worldwide. Understanding the layered structure, muscle arrangement, and canal boundaries is essential for diagnosis and safe clinical practice.

2️⃣ Foundation Basics

Key Definitions

• Anterior Abdominal Wall — The multilayered muscular and fascial structure forming the front of the abdomen.

• Anterolateral Abdominal Muscles — Muscles forming the lateral abdominal wall responsible for movement and support.

• Rectus Sheath — A fibrous covering formed by abdominal muscle aponeuroses enclosing the rectus abdominis muscle.

• Inguinal Canal — An oblique passage in the lower abdominal wall transmitting reproductive structures.

• Hernia — Protrusion of an organ or tissue through a weakened body wall.

• Transpyloric Plane — A horizontal anatomical plane passing through important abdominal structures.

Essential Terminology

• Aponeurosis — Flat tendon-like sheet of connective tissue.
• Linea Alba — Midline fibrous structure formed by fusion of aponeuroses.
• Semilunar Line — Curved lateral border of rectus abdominis.
• Deep Inguinal Ring — Entrance of inguinal canal.
• Superficial Inguinal Ring — Exit of inguinal canal.
• Hesselbach’s Triangle — Weak area in lower abdominal wall associated with hernias.

3️⃣ Core Learning — Curriculum Coverage

1. Origin, Insertion, Nerve Supply and Actions of Anterolateral Abdominal Wall Muscles

• External Oblique
• Internal Oblique
• Transversus Abdominis
• Rectus Abdominis
• Pyramidalis (minor muscle)

External Oblique Muscle

CORE

• Definition: Most superficial abdominal muscle forming lateral abdominal wall
• Location: Superficial layer, lateral abdomen
• Origin: Lower 8 ribs (5th–12th ribs)
• Insertion: Linea alba, pubic tubercle, anterior iliac crest
• Nerve Supply: Thoracoabdominal nerves (T7–T11), Subcostal nerve (T12)
• Action:
  • Compress abdominal contents
  • Flex trunk
  • Rotate trunk to opposite side
• Functional Role: Provides abdominal wall strength and trunk movement

 CONCEPT EXPLAINED
Structure:
Fibers run downward and medially, similar to direction of hands in pockets.
Mechanism:

• Bilateral contraction → trunk flexion
• Unilateral contraction → rotation to opposite side
• Compression supports abdominal organs
  Structure → Function:
  Oblique fiber direction allows twisting movements and provides broad muscular support.

 IF DAMAGED
Cause: Nerve injury (T7–T12)
Effect:

• Weak abdominal wall
• Reduced trunk rotation
• Increased risk of hernia

CORE

• Definition: Intermediate muscle of lateral abdominal wall
• Location: Between external oblique and transversus abdominis
• Origin: Thoracolumbar fascia, iliac crest, inguinal ligament
• Insertion: Lower ribs (10–12), linea alba
• Nerve Supply: Thoracoabdominal nerves (T7–T11), T12, L1
• Action:

Compress abdominal contents
Flex trunk
Rotate trunk to same side
 CONCEPT EXPLAINED

Structure:
Fibers run upward and medially, opposite to external oblique.

Mechanism:

• Bilateral contraction → trunk flexion
• Unilateral contraction → rotation to same side

Structure → Function:
Opposite fiber orientation to external oblique allows balanced trunk rotation.

 IF DAMAGED

• Weak trunk rotation
• Reduced abdominal compression
• Risk of hernia formation

Transversus Abdominis

CORE

• Definition: Deepest abdominal muscle
• Location: Deep layer of abdominal wall
• Origin: Lower ribs, thoracolumbar fascia, iliac crest
• Insertion: Linea alba
• Nerve Supply: T7–T12, L1
• Action: Compress abdominal contents
• Functional Role: Provides major abdominal wall support

 CONCEPT EXPLAINED
Structure:
Fibers run horizontally across abdomen.
Mechanism:
Contraction pulls abdominal wall inward → compresses organs.
Structure → Function:
Horizontal fibers act like a corset, stabilizing abdominal contents.

 IF DAMAGED

• Loss of abdominal support
• Increased intra-abdominal pressure complications
• Risk of abdominal wall weakness

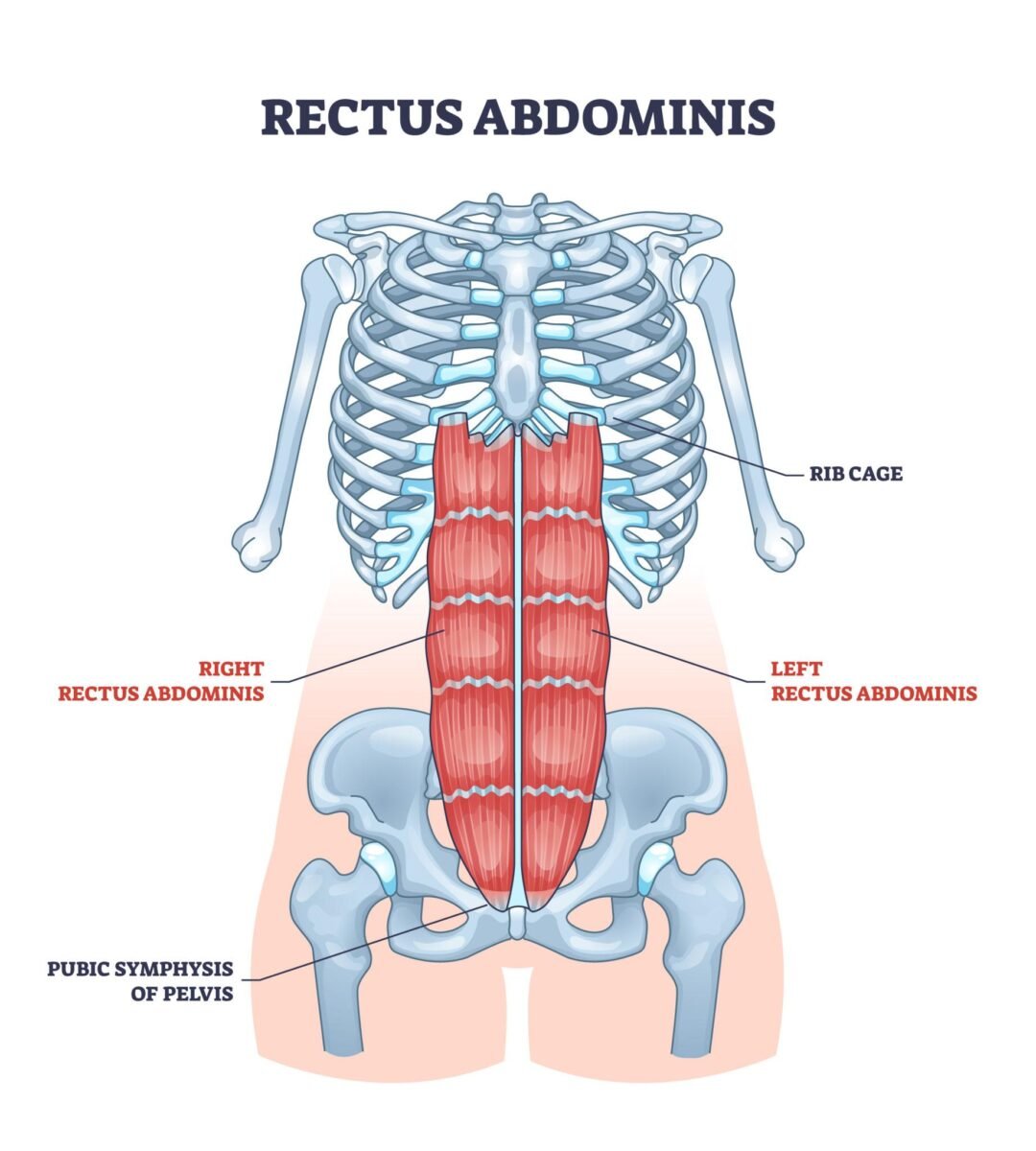

Rectus Abdominis

CORE

• Definition: Long vertical muscle in anterior abdominal wall
• Location: On either side of linea alba
• Origin: Pubic crest
• Insertion: 5th–7th costal cartilages
• Nerve Supply: T7–T12
• Action:
  • Flex trunk
  • Stabilize pelvis
  • Compress abdomen

 CONCEPT EXPLAINED
Structure:
Contains tendinous intersections, dividing muscle into segments.
Mechanism:
Shortening pulls rib cage downward → trunk flexion.
Structure → Function:
Segmented design increases strength and flexibility.

 IF DAMAGED

• Weak trunk flexion
• Reduced abdominal support
• Postural instability

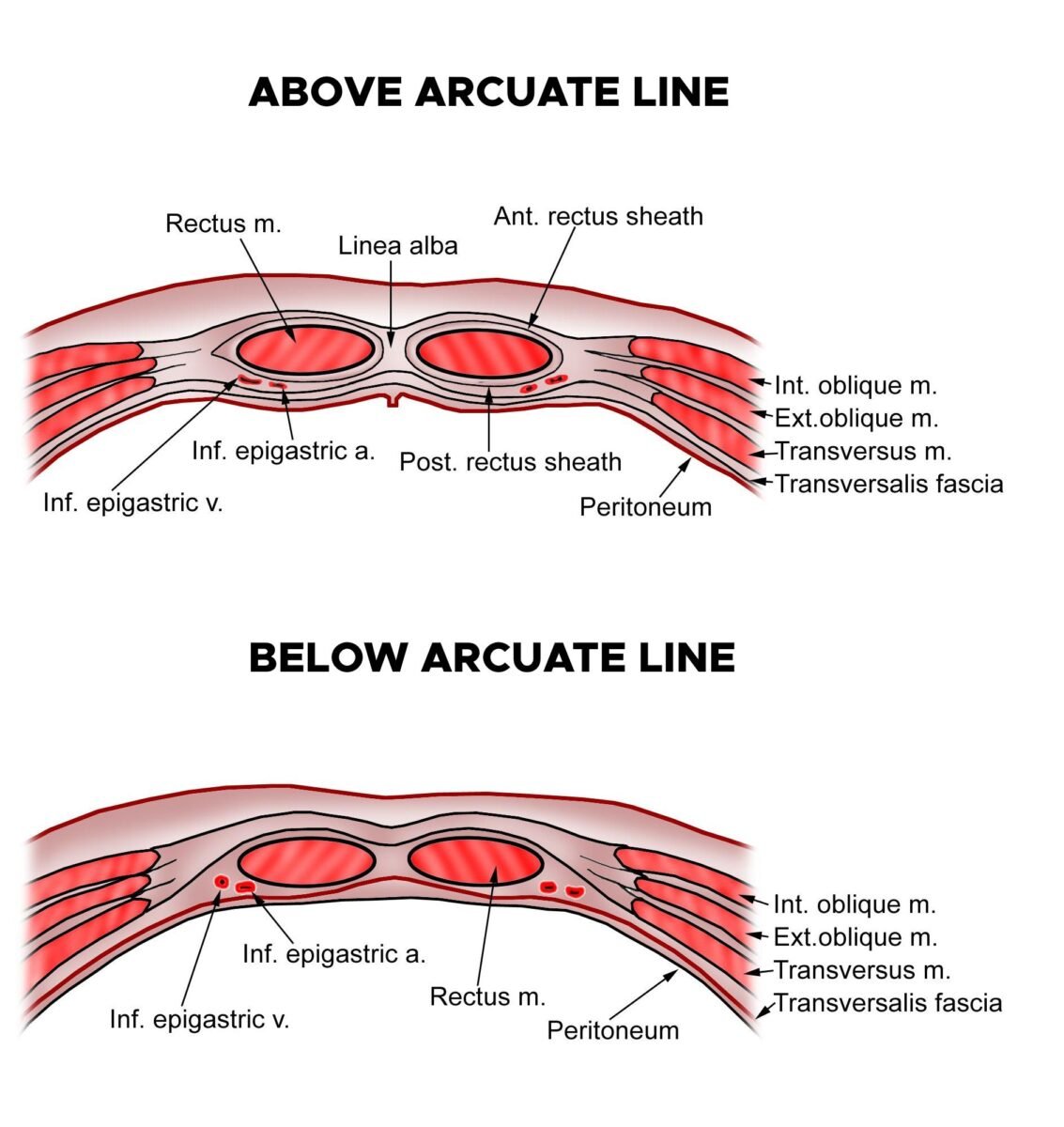

2. Formation of Rectus Sheath

 CORE

• Definition: Fibrous sheath enclosing rectus abdominis
• Formed By: Aponeuroses of three abdominal muscles
  • External oblique
  • Internal oblique
  • Transversus abdominis
• Has anterior and posterior layers
• Changes structure at arcuate line

 CONCEPT EXPLAINED
Above Arcuate Line:

• External oblique → anterior
• Internal oblique → splits
• Transversus → posterior
  Below Arcuate Line:
  All aponeuroses pass anteriorly.
  Structure → Function:
  Provides strength and protection to rectus muscle.

 IF DAMAGED

• Weak abdominal wall
• Hernia formation risk
• Loss of abdominal wall integrity

Contents of Rectus Sheath
 CORE
Contains:

• Rectus abdominis muscle
• Pyramidalis muscle
• Superior epigastric vessels
• Inferior epigastric vessels
• Thoracoabdominal nerves

 CONCEPT EXPLAINED
Rectus sheath protects muscles and vessels while allowing movement.
Structure → Function:
Strong fibrous covering prevents injury to internal vessels.

 IF DAMAGED

• Bleeding (epigastric vessel injury)
• Muscle dysfunction
• Hematoma formation

3. Surface Anatomy of Anterior Abdominal Wall

CORE

• Definition: Surface anatomy refers to visible and palpable landmarks on the abdominal wall used to identify internal structures.
• 3D Location:
  • Anterior aspect of abdomen
  • Extends from costal margin above to pubic symphysis below
  • From midline (linea alba) to flanks laterally
• Major Surface Landmarks:
  • Linea alba
  • Linea semilunaris
  • Umbilicus
  • Costal margin
  • Iliac crest
  • Inguinal ligament
• Functional Role:
  • Helps clinicians locate organs
  • Guides physical examination
  • Used in surgical incisions

 CONCEPT EXPLAINED
Structure
The anterior abdominal wall contains several important visible landmarks used to divide the abdomen into regions.
Key Surface Structures

1. Linea Alba

• Midline fibrous structure
• Extends from xiphoid process to pubic symphysis
• Formed by fusion of abdominal muscle aponeuroses

1. Linea Semilunaris

• Curved line marking lateral border of rectus abdominis
• Important surgical landmark

1. Umbilicus

• Located at L3–L4 vertebral level
• Important reference point
• Marks center of abdomen

1. Inguinal Ligament

• Runs from anterior superior iliac spine (ASIS) to pubic tubercle
• Forms lower boundary of abdomen

Abdominal Regions Division
9-Region Division
Formed by:

• Two vertical midclavicular lines
• Two horizontal planes
  Regions:
  Upper Row
• Right hypochondrium
• Epigastric
• Left hypochondrium
  Middle Row
• Right lumbar
• Umbilical
• Left lumbar
  Lower Row
• Right iliac
• Hypogastric
• Left iliac

4-Quadrant Division
Formed by:

• Median plane
• Transumbilical plane
  Quadrants:
• Right Upper Quadrant (RUQ)
• Left Upper Quadrant (LUQ)
• Right Lower Quadrant (RLQ)
• Left Lower Quadrant (LLQ)

Structure → Function
Surface landmarks allow:
Surface landmark
→ Organ localization
→ Accurate clinical diagnosis
Example:
McBurney’s Point
→ Location of appendix
→ Helps diagnose appendicitis

 IF DAMAGED
Cause: Loss of anatomical knowledge or incorrect localization
Effect:

• Incorrect diagnosis
• Surgical injury to organs
• Misplaced incisions

Additional High-Yield Surface Landmarks
McBurney’s Point
Location:

• Junction of lateral 1/3 and medial 2/3 of line from umbilicus to ASIS
  Clinical Importance:
• Site of maximum tenderness in appendicitis

Midclavicular Line
Location:

• Vertical line passing through midpoint of clavicle
  Clinical Importance:
• Divides abdomen into regions

Inguinal Ligament Surface Marking
Location:

• Between ASIS and pubic tubercle
  Clinical Importance:
• Important boundary of inguinal canal

4. Structures Related to Transpyloric Plane

CORE

• Definition:
  A horizontal anatomical plane passing through the abdomen at the level of L1 vertebra, used as an important surface landmark to locate abdominal organs.
• 3D Location:
  • Lies midway between:
  o Suprasternal notch
  o Pubic symphysis
  • Approximately halfway between xiphisternum and umbilicus
• Alternate Name:
  Addison’s Plane
• Major Structures Related to Transpyloric Plane:
  • Pylorus of stomach
  • Neck of pancreas
  • Fundus of gallbladder
  • Origin of superior mesenteric artery
  • Hila of kidneys
  • Duodenojejunal flexure
• Functional Role:
  Helps clinicians locate major abdominal organs during examination and imaging.

 CONCEPT EXPLAINED
Structure
The transpyloric plane is a key horizontal reference line used in anatomy and clinical medicine.
It crosses the vertebral column at L1 level, making it one of the most reliable anatomical reference planes.

Major Structures Located at Transpyloric Plane
 Pylorus of Stomach

• Junction between stomach and duodenum
• Lies at L1 level
• Important in gastric emptying
  Structure → Function:
  Pyloric sphincter regulates passage of food into duodenum.

 Neck of Pancreas

• Lies anterior to portal vein formation
• Divides head and body of pancreas
  Structure → Function:
  Important landmark in pancreatic anatomy and surgery.

 Fundus of Gallbladder

• Lies at tip of right 9th costal cartilage
• Located at level of transpyloric plane
  Structure → Function:
  Stores bile produced by liver.

 Superior Mesenteric Artery (SMA) Origin

• Arises from abdominal aorta at L1
  Structure → Function:
  Supplies midgut structures.

 Hilum of Kidneys

• Both kidneys lie at this level
• Left kidney slightly higher than right
  Structure → Function:
  Allows entry and exit of renal vessels and ureter.

 Duodenojejunal Flexure

• Junction between duodenum and jejunum
• Suspended by ligament of Treitz
  Structure → Function:
  Important for transition of digestion and absorption.

Structure → Function → Outcome
Transpyloric Plane
→ Identifies central abdominal organs
→ Helps in diagnosis and safe surgical access
Example:
Pain at transpyloric level
→ May involve pylorus or pancreas
→ Helps narrow diagnosis

 IF DAMAGED / MISINTERPRETED
Cause: Incorrect anatomical identification
Effect:

• Misdiagnosis of abdominal pathology
• Injury to vital structures during surgery
• Difficulty locating organs clinically

Clinical Importance of Transpyloric Plane
Used In:

• Abdominal examination
• Ultrasound localization
• CT scan interpretation
• Surgical planning
• Organ surface marking
  High-Yield Memory Aid
  Structures at Transpyloric Plane — Remember:
  “PPP KFD”
  P → Pylorus
  P → Pancreas (neck)
  P → Portal vein formation
  K → Kidneys (hilum)
  F → Fundus of gallbladder
  D → Duodenojejunal flexure

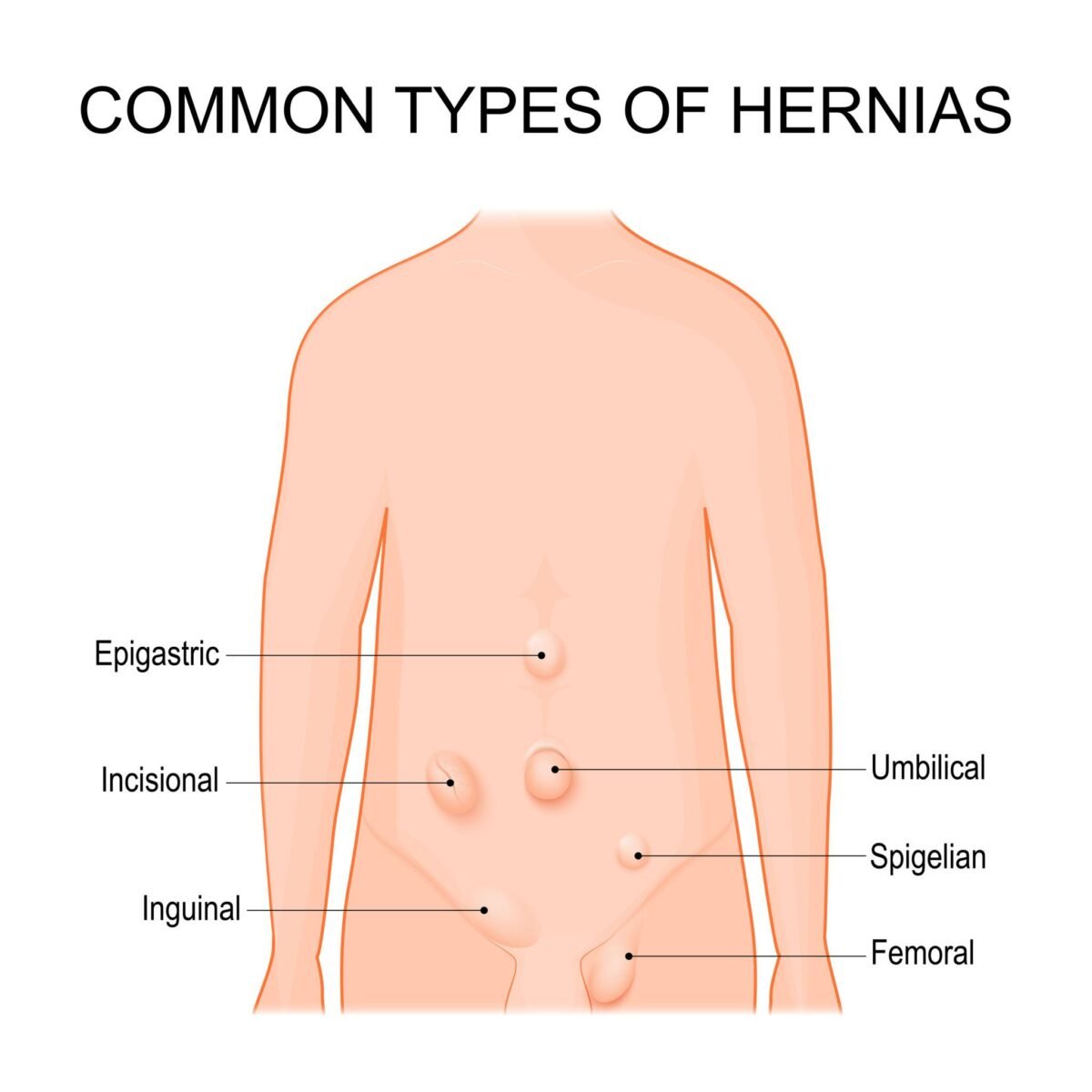

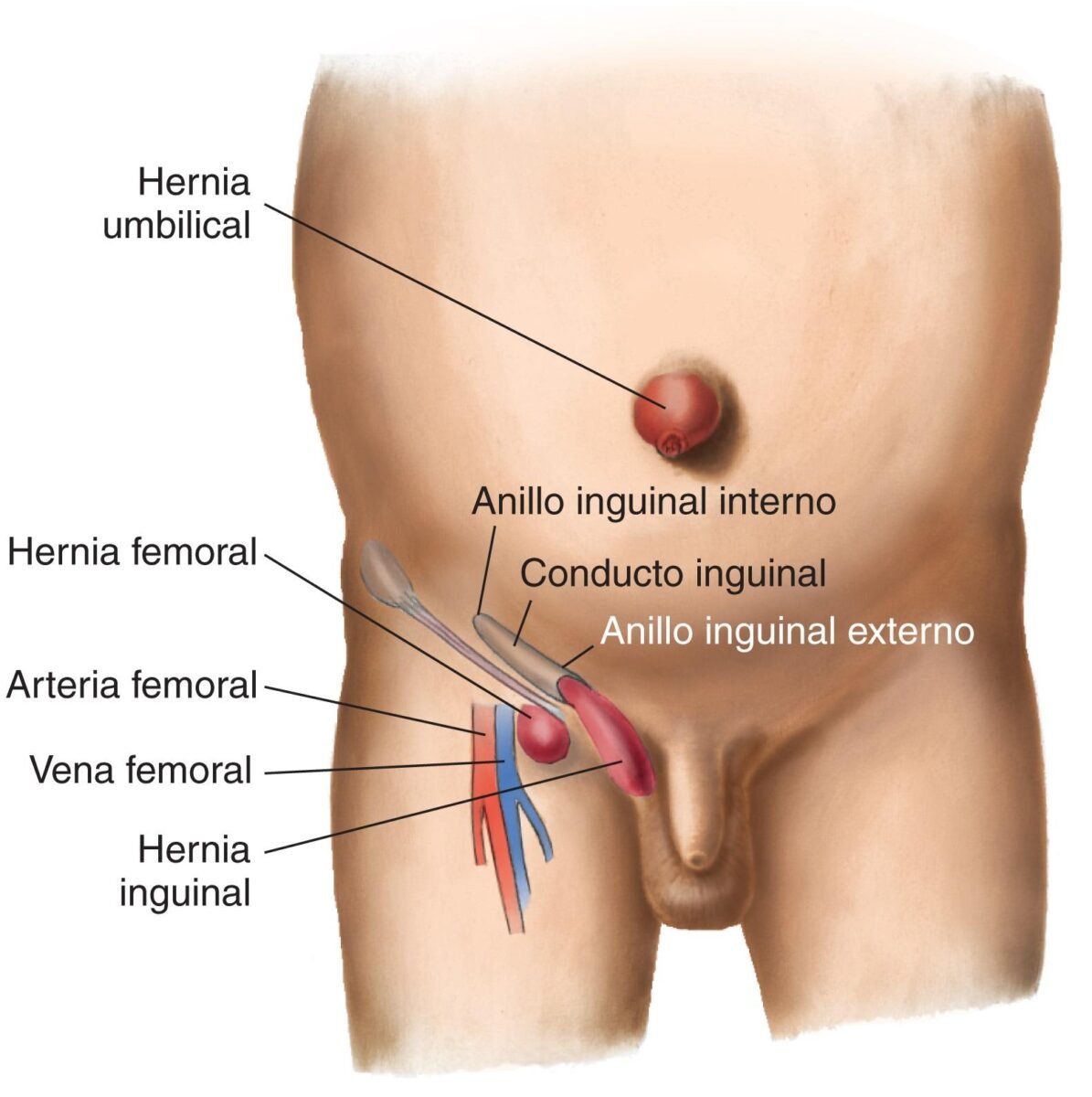

5. Types of Abdominal Hernias

 CORE

• Definition:
  A hernia is the protrusion of a viscus (usually intestine) through a weakness in the abdominal wall.
• 3D Location:
  Occurs at weak areas of anterior abdominal wall, especially in the lower abdomen.
• Major Components of Hernia:

1. Hernial sac (peritoneum)
2. Hernial contents (usually intestine)
3. Hernial coverings (abdominal wall layers)

• Common Types of Abdominal Hernias (BD Chaurasia level):
  • Inguinal hernia (most common)
  • Femoral hernia
  • Umbilical hernia
  • Incisional hernia
  • Epigastric hernia
• Primary Function (Why it exists):
  Weak areas exist naturally to allow passage of structures such as spermatic cord and vessels.

 CONCEPT EXPLAINED
What is a Hernia?
Normally, abdominal muscles and fascia hold abdominal organs inside.
If there is:

• Weak muscle wall
  OR
• Increased intra-abdominal pressure
  → Abdominal contents push outward
  → Hernia develops.

Major Types of Abdominal Hernias

 Inguinal Hernia
 CORE

• Most common abdominal hernia
• Occurs in inguinal region above inguinal ligament
• More common in males
• Two types:
  • Direct inguinal hernia
  • Indirect inguinal hernia

 Structure → Function
The inguinal canal is a natural weak point allowing passage of spermatic cord.
Weak abdominal wall
→ Intestine pushes through
→ Inguinal hernia develops

 IF DAMAGED
Cause → Weak posterior wall
Effect → Hernia formation

 Femoral Hernia
 CORE

• Occurs below inguinal ligament
• Passes through femoral canal
• More common in females
• Higher risk of strangulation

 Structure → Function
Femoral canal normally contains lymphatics.
Weak femoral ring
→ Abdominal contents pass into thigh region
→ Femoral hernia forms

 IF DAMAGED
Cause → Weak femoral canal
Effect → Painful swelling below inguinal ligament

 Umbilical Hernia
 CORE

• Occurs at umbilicus
• Common in infants
• Due to incomplete closure of umbilical ring

 Structure → Function
Umbilical ring normally closes after birth.
Failure of closure
→ Weak area persists
→ Umbilical hernia forms

 IF DAMAGED
Cause → Weak umbilical scar
Effect → Bulging at umbilicus

 Incisional Hernia
 CORE

• Occurs at site of previous surgical incision
• Due to poor healing of abdominal wall

 Structure → Function
Scar tissue weaker than muscle.
Weak scar
→ Organ protrusion
→ Incisional hernia develops
 IF DAMAGED
Cause → Poor wound healing
Effect → Hernia at surgical site

 Epigastric Hernia
 CORE

• Occurs through linea alba
• Located between umbilicus and xiphisternum
• Contains preperitoneal fat

 Structure → Function
Linea alba contains small defects.
Fat pushes through defect
→ Epigastric swelling forms

 IF DAMAGED
Cause → Weak linea alba
Effect → Midline swelling

Why Hernias Occur (High-Yield Mechanism)
Weak abdominal wall
+
Increased pressure (coughing, lifting, pregnancy)
↓
Protrusion of abdominal contents
↓
Hernia formation

Structure → Function → Outcome
Weak area in abdominal wall
→ Allows passage of structures
→ Predisposes to hernia formation

Clinical Correlation (BD Chaurasia Level)
Reducible Hernia

• Swelling disappears on pressure
• Contents return into abdomen

Irreducible Hernia

• Cannot be pushed back
• Risk of obstruction

Strangulated Hernia

• Blood supply cut off
• Medical emergency

6. Boundaries of Inguinal Canal

 CORE

• Definition:
  The inguinal canal is an oblique passage in the lower anterior abdominal wall, transmitting structures between abdomen and external genitalia.
• 3D Location:

Located above medial half of inguinal ligament
Extends from deep inguinal ring (posterolateral)
Ends at superficial inguinal ring (anteromedial)

• Length:
  Approximately 4 cm
• Openings:

Deep inguinal ring (entrance)
Superficial inguinal ring (exit)

• Major Boundaries:

Anterior wall
Posterior wall
Roof
Floor

• Primary Function:
  Allows passage of spermatic cord (male) and round ligament (female).

 CONCEPT EXPLAINED
What is the Inguinal Canal?

The inguinal canal is a slanting tunnel running downward, forward, and medially in the lower abdomen.

It exists because during development, the testis descends from abdomen into scrotum, leaving behind this passage.

Boundaries of Inguinal Canal

(VERY HIGH-YIELD — Frequently asked in exams)

 Anterior Wall
 CORE

Formed by:

• Aponeurosis of external oblique muscle (throughout)
• Internal oblique muscle fibers (laterally)

3D Position:

• Lies in front of inguinal canal

Functional Role:
Provides front protection to canal contents.

 Structure → Function

External oblique aponeurosis forms a strong fibrous sheet.

Extra reinforcement laterally by internal oblique
→ Prevents bulging at deep ring
→ Supports inguinal canal.

 IF DAMAGED

Weak anterior wall
→ Increased risk of inguinal hernia

 Posterior Wall
 CORE

Formed by:

• Transversalis fascia (throughout)
• Conjoint tendon (medially)

3D Position:

• Lies behind inguinal canal

Functional Role:
Provides main structural strength.

 Structure → Function

Transversalis fascia is thin but reinforced medially by conjoint tendon.

This reinforcement protects Hesselbach’s triangle — a weak area.

 IF DAMAGED

Weak posterior wall
→ Direct inguinal hernia

(Very important clinical relation)

 Roof
 CORE

Formed by:

• Arching fibers of:

Internal oblique
Transversus abdominis

3D Position:

• Upper boundary of canal

Functional Role:
Acts as muscular cover.

 Structure → Function

Arching fibers contract
→ Compress canal
→ Prevent hernia formation.

 IF DAMAGED

Weak roof
→ Loss of muscular support
→ Hernia risk increases.

 Floor
 CORE

Formed by:

• Inguinal ligament
• Lacunar ligament (medially)

3D Position:

• Lower boundary of canal

Functional Role:
Supports contents of inguinal canal.

 Structure → Function

Inguinal ligament acts like a floor support beam.

Lacunar ligament strengthens medial part.

 IF DAMAGED

Weak floor
→ Hernial protrusion downward
→ Femoral hernia risk.

Deep and Superficial Inguinal Rings

(Exam favorite topic)

Deep Inguinal Ring
 CORE

• Opening in transversalis fascia
• Located above midpoint of inguinal ligament
• Entrance of canal

Superficial Inguinal Ring
 CORE

• Opening in external oblique aponeurosis
• Located above pubic tubercle
• Exit of canal

Structure → Function → Outcome

Oblique canal
+
Strong muscular walls
↓
Protects abdominal contents
↓
Reduces hernia risk

High-Yield Memory Aid
Boundaries of Inguinal Canal

Mnemonic:
“MALT”

M → Muscle (roof)
A → Aponeurosis (anterior wall)
L → Ligament (floor)
T → Transversalis fascia (posterior wall)

Clinical Integration (BD Chaurasia Focus)
Hesselbach’s Triangle

(Important weak area)

Boundaries:

• Medial — Rectus abdominis
• Lateral — Inferior epigastric vessels
• Inferior — Inguinal ligament

Clinical relevance:
Site of direct inguinal hernia.

7. Contents of Inguinal Canal (Male & Female)

CORE

• Definition:
  The inguinal canal contents are structures that pass through the canal from abdomen to external genitalia.
• 3D Location:
  Within the inguinal canal, running from deep inguinal ring (lateral) to superficial inguinal ring (medial).
• Main Difference:
  • Male: Spermatic cord
  • Female: Round ligament of uterus
• Structures Present in Both Sexes:
  • Ilioinguinal nerve
• Primary Function:
  Allows passage of reproductive structures while maintaining abdominal wall integrity.

 CONCEPT EXPLAINED
The inguinal canal acts as a protected passageway that transmits structures from the abdomen to external genitalia.
It exists mainly because of testicular descent in males and persistence of a similar but smaller passage in females.

Contents of Inguinal Canal in MALE
(VERY HIGH-YIELD — Frequently asked)

 CORE
Main Content:
Spermatic Cord
Additional Structure:

• Ilioinguinal nerve

Spermatic Cord — Major Components

 CORE
Contains:

• Vas deferens
  → Transports sperm
• Testicular artery
  → Branch of abdominal aorta
• Pampiniform plexus of veins
  → Venous drainage of testis
• Cremasteric artery
  → From inferior epigastric artery
• Artery to vas deferens
  → From superior vesical artery
• Genital branch of genitofemoral nerve
  → Supplies cremaster muscle
• Lymphatics
  → Drain testis
• Remnant of processus vaginalis

Structure → Function
Spermatic cord components allow:
Testicular artery
→ Blood supply to testis
Vas deferens
→ Sperm transport
Pampiniform plexus
→ Temperature regulation of testis
(Ilioinguinal nerve supplies sensation to upper medial thigh and scrotum)

 IF DAMAGED
Cause → Injury to spermatic cord
Effect →

• Loss of blood supply
• Infertility risk
• Pain and swelling

Contents of Inguinal Canal in FEMALE

 CORE
Contains:

• Round ligament of uterus
• Ilioinguinal nerve

Round Ligament of Uterus
 CORE

• Fibrous band extending from uterus to labia majora
• Maintains anteverted position of uterus

Structure → Function
Round ligament
→ Supports uterus
→ Maintains correct uterine position

 IF DAMAGED
Cause → Ligament weakness
Effect →

• Loss of uterine support
• Predisposition to uterine displacement

Structure → Function → Outcome
Inguinal canal
→ Transmits reproductive structures
→ Maintains reproductive function

Comparison — Male vs Female Contents
(High-Yield Table — BD Chaurasia Style)
Feature Male Female
Main Content Spermatic cord Round ligament
Additional Nerve Ilioinguinal nerve Ilioinguinal nerve
Canal Size Larger Smaller
Hernia Risk Higher Lower

Developmental Basis (Why Canal Exists)
(High-Yield Understanding)
During fetal life:
Testis descends
↓
Passes through abdominal wall
↓
Forms inguinal canal
In females:
Similar pathway persists as smaller canal.

Clinical Correlation
Ilioinguinal Nerve Injury
Cause → Surgical damage
Effect →

• Loss of sensation
• Groin numbness

Varicocele
Cause → Dilated pampiniform plexus
Effect →

• Scrotal swelling
• Fertility issues

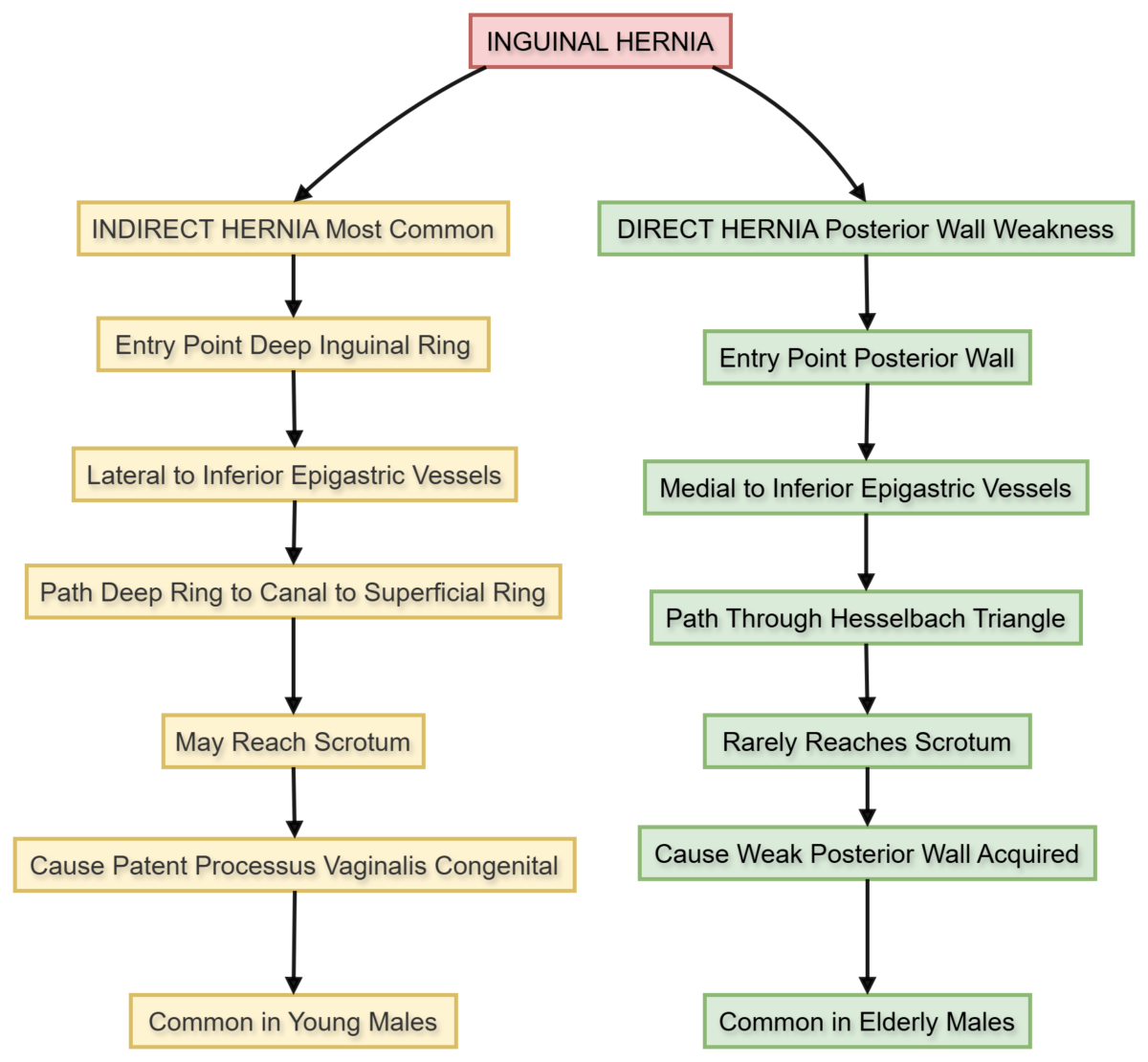

Direct and Indirect Inguinal Hernia

CORE

• Definition:
An inguinal hernia is the protrusion of abdominal contents through the inguinal region due to weakness in the abdominal wall.

• Types:

1. Indirect Inguinal Hernia
2. Direct Inguinal Hernia

• Key Distinguishing Landmark:
Inferior epigastric vessels

• Primary Functional Importance:
Understanding the difference helps in clinical diagnosis and surgical management.

 CONCEPT EXPLAINED

The inguinal region contains natural weak areas where abdominal contents may protrude.

The route taken by the hernia sac determines whether it is direct or indirect.

 Indirect Inguinal Hernia

(Most Common Type — Very High Yield)

 CORE

• Definition:
Hernia that passes through the deep inguinal ring and follows the inguinal canal pathway.

• Location:
Lateral to inferior epigastric vessels

• Pathway:
Deep ring
→ Inguinal canal
→ Superficial ring
→ May reach scrotum

• Common In:
Young males

• Cause:
Persistence of processus vaginalis (congenital cause)

 Structure → Function

Normally:

Processus vaginalis closes
↓
Prevents abdominal contents from entering canal

If remains open:
↓
Intestine follows spermatic cord pathway
↓
Indirect hernia forms

 IF DAMAGED / OCCURS

Cause → Patent processus vaginalis

Effect →
• Hernia extends into scrotum
• Scrotal swelling
• Risk of strangulation

 Direct Inguinal Hernia

 CORE

• Definition:
Hernia that protrudes directly through posterior wall of inguinal canal.

• Location:
Medial to inferior epigastric vessels

• Site:
Hesselbach’s Triangle

• Common In:
Older males

• Cause:
Weak posterior wall of inguinal canal.

 Structure → Function

Posterior wall becomes weak
↓
Abdominal contents push forward
↓
Direct hernia develops

Unlike indirect hernia:
Usually does not enter scrotum.

 IF DAMAGED / OCCURS

Cause → Weak abdominal muscles

Effect →
• Bulging in groin
• Usually reducible
• Lower risk of reaching scrotum

Hesselbach’s Triangle

(Very Important Exam Landmark)

 CORE

Boundaries:

• Medial — Rectus abdominis
• Lateral — Inferior epigastric vessels
• Inferior — Inguinal ligament

Clinical Role:
Site of direct inguinal hernia.

Key Difference — Direct vs Indirect Hernia

(Extremely High-Yield Table — BD Chaurasia Standard)

Structure → Function → Outcome

Weak abdominal wall
↓
Increased intra-abdominal pressure
↓
Hernial protrusion occurs

Type depends on route of protrusion.

Clinical Correlation

Expansile Cough Impulse

Finding:
Swelling increases on coughing.

Indicates:
Presence of inguinal hernia.

Strangulated Hernia

Cause → Blood supply cut off

Effect →
• Severe pain
• Intestinal obstruction
• Surgical emergency

Direct vs Indirect Inguinal Hernia (Single Integrated Map)

4️⃣ Mechanism Flow

Mechanism 1 — Formation of Rectus Sheath
Above Arcuate Line

 External oblique → passes anterior to rectus muscle
 Internal oblique → splits into two layers
 Transversus abdominis → passes posterior
 Layers meet in midline → form linea alba

 Result:
Rectus muscle enclosed in strong anterior & posterior walls

Below Arcuate Line

 All aponeuroses pass anterior to rectus muscle
 Posterior wall contains only transversalis fascia

 Result:
Posterior wall becomes weak area

Mechanism 2 — Formation of Inguinal Canal

 Testis develops in abdomen
 Descends toward scrotum
 Processus vaginalis forms pathway
 Testis passes through this pathway
 Remaining pathway becomes inguinal canal

 Result:
Permanent passage formed in abdominal wall.

Mechanism 3 — Indirect Inguinal Hernia

 Processus vaginalis remains open
 Abdominal pressure increases
 Contents enter deep ring
 Pass through inguinal canal
 May reach scrotum

 Result:
Indirect inguinal hernia develops

Mechanism 4 — Direct Inguinal Hernia

 Posterior wall becomes weak
 Pressure pushes abdominal contents
 Hernia protrudes through Hesselbach triangle

 Result:
Direct inguinal hernia develops

Mechanism 5 — Protective (Shutter) Mechanism

 Internal oblique & transversus arch over canal
 During contraction → fibers descend
 Canal becomes compressed

 Result:
Helps prevent hernia formation

Mechanism 6 — Abdominal Muscle Pressure Action

 Abdominal muscles contract
 Abdominal volume decreases
 Pressure increases

 Used in:

• Defecation
• Micturition
• Vomiting
• Childbirth

5️⃣ Functional Integration

Structure → Function → Outcome
 Layered Abdominal Muscles
External oblique + Internal oblique + Transversus
→ Compress abdomen
→ Support abdominal organs
→ Maintain intra-abdominal pressure

 Rectus Sheath Formation
Aponeurotic layers surround rectus muscle
→ Provide protection and strength
→ Prevent bulging of abdominal contents

 Inguinal Canal Design
Oblique pathway with muscular roof
→ Allows passage of reproductive structures
→ Reduces risk of herniation

 Posterior Wall Strength
Transversalis fascia + Conjoint tendon
→ Supports weak medial area
→ Prevents direct hernia

 Weak Areas in Abdominal Wall
Natural openings exist
→ Allow passage of structures
→ Predispose to hernia formation

6️⃣ Clinical Correlation

(Exam-Relevant & Common Conditions Only)

 Inguinal Hernia
Most common abdominal wall hernia.
Types:

• Indirect → Congenital (patent processus vaginalis)
• Direct → Acquired (posterior wall weakness)
  Clinical Finding:
  Groin swelling with expansile cough impulse

 Femoral Hernia

• Occurs below inguinal ligament
• More common in females
• High risk of strangulation
  Clinical Sign:
  Swelling below inguinal ligament.

 Umbilical Hernia

• Occurs at umbilicus
• Common in infants
• Due to incomplete closure of umbilical ring.

 Strangulated Hernia
Blood supply to herniated contents stops.
Features:

• Severe pain
• Swelling
• Surgical emergency.

 Rectus Sheath Hematoma
Bleeding into rectus sheath due to vessel injury.
Clinical Features:

• Painful abdominal swelling
• Local tenderness.

 Varicocele (Related to Spermatic Cord)
Dilated pampiniform plexus.
Common Side:
Left side
Effect:

• Scrotal swelling
• Possible infertility.

⭐ 7️⃣ Points to Remember

(High-Yield Revision Points)

 External oblique fibers run downward & medially (“hands in pockets”).
 Internal oblique fibers run upward & medially.
 Transversus abdominis fibers run horizontally.
 Rectus sheath posterior wall weak below arcuate line.
 Inguinal canal length ≈ 4 cm.
 Deep ring lies lateral to inferior epigastric vessels.
 Direct hernia → medial to inferior epigastric vessels.
 Indirect hernia → lateral to inferior epigastric vessels.
 Hesselbach triangle → site of direct inguinal hernia.
 Indirect hernia may reach scrotum, direct usually does not.

🎥 8️⃣ Recommended Video

Paste YouTube link here.
